• Seek Thermal CompactPRO FF


    Product Description

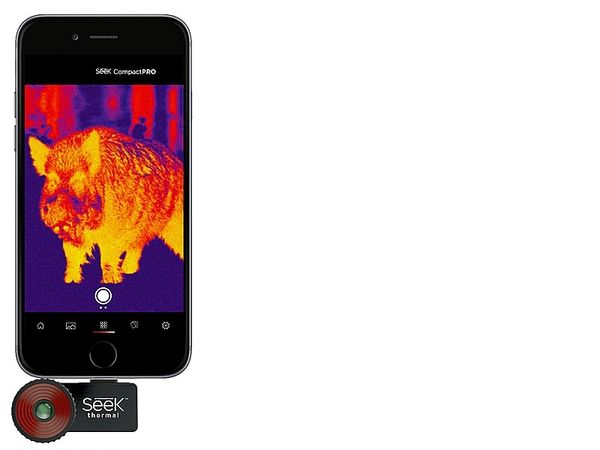

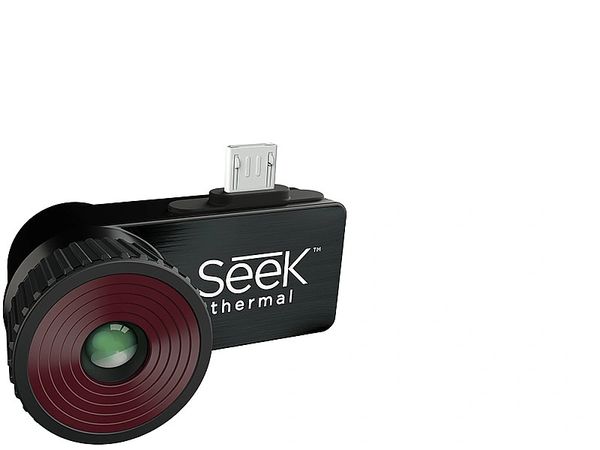

    The Seek Thermal CompactPRO is the latest in a line of handheld thermal imagers that are designed to work with a Smartphone. The CompactPRO has a larger 320x240 thermal sensor resulting in a more detailed image, increased field of view and detection range.

    It is an excellent tool for hunters and outdoor enthusiasts alike, this versatile device can capture temperature fluctuations anywhere from -40° to 330°C, and now comes with a 32° field of view and a detection range of 550m. Making it even easier to detect and observe.

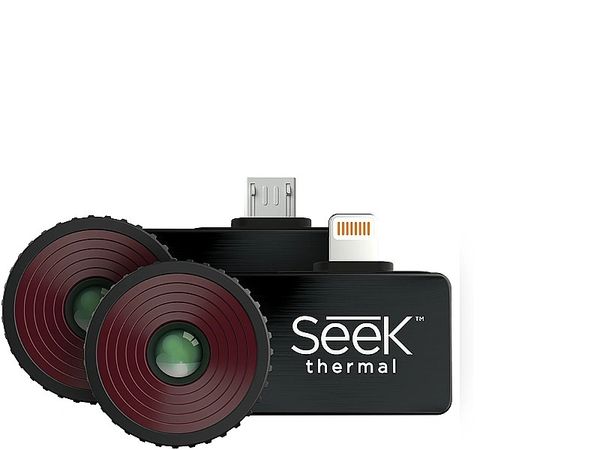

    The CompactPRO works with iPhone or Android phones (Check compatibility here:
    http://www.thermal.com/supported), and is easy to operate with the free Seek app. Once installed, the device is instantly ready for use. The app is downloadable from the Apple iTunes store and Google play store and has recently been improved to include:

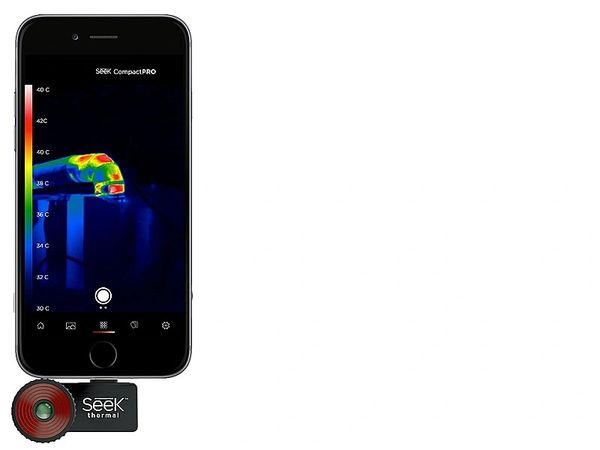

    Thermal Level and Span – Easily set and lock a temperature range to display the maximum thermal information of any object or scene with a set point and range.

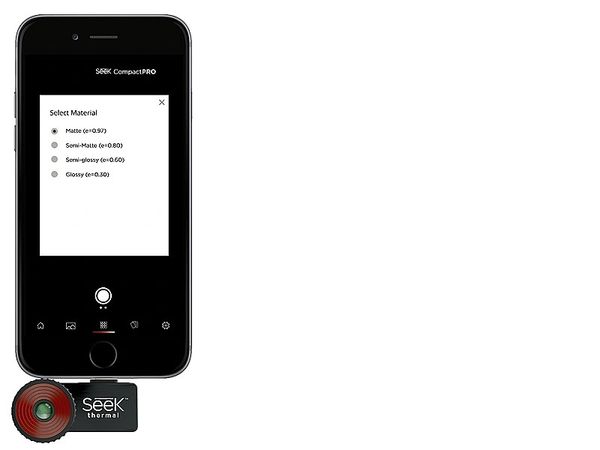

    Emissivity Control – Calibrate for emissivity through easy, pre-defined settings. Compensate for various surface materials, ensuring accurate readings and reporting.

    New Image Color Palettes – Enhanced palette options provide the visual capabilities necessary to help users easily examine and understand thermal imagery.

    Full Frame Thermography – Choose from 4:3 or 16:9 formats displaying all temperature data for the maximum clarity and options responsive to your device format and size.

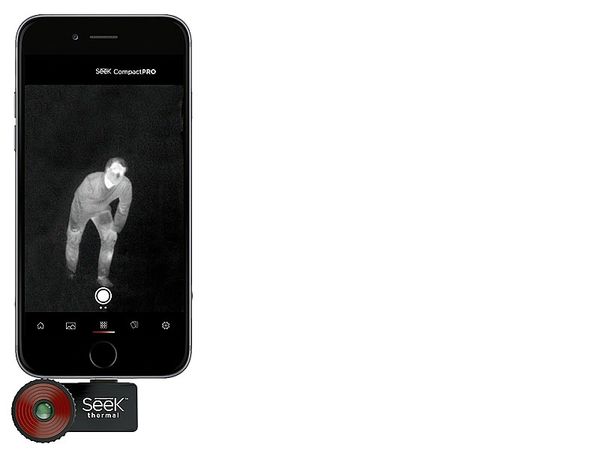

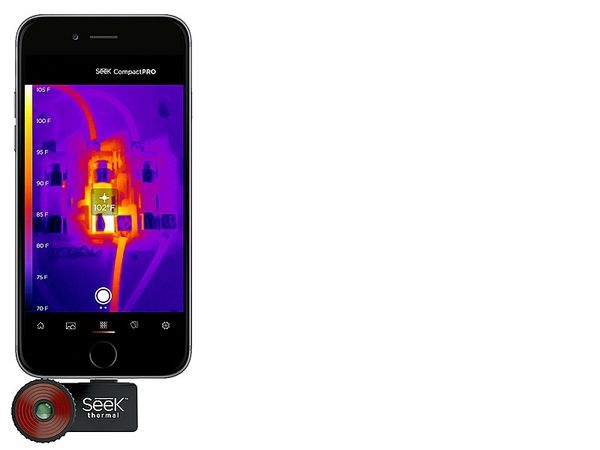

    Complete with 7 User Modes including: Spot temperature, High / Low temperature, Level and Span, Above Threshold, Below Threshold, Equal Threshold, and Thermal+ Visible.


    - 320x240 Thermal Sensor
    - 32° Field of view
    - 550m Detection Range
    - Temperature Range: -40°C to 330°C
    - Frame Rate: >15 Hz
    - Spectral Range: 7.5-14µ
    - lens material: Chalcogenide
    - Microbolometer: Vanadium Oxide


    - Connects to and is powered by a smartphone
    - Controlled by free Seek Thermal app
    - Thermal tools: Spot thermography, Hi-Low, and Threshold modes
    - Records photos and video
    - Stores photos/video directly to smartphone
    - Share directly from mobile app to email, text, and social media
    - 9 Colour Palette options

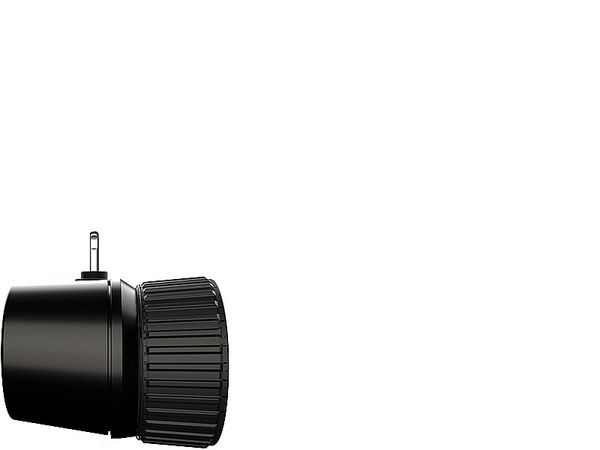

    - Adjustable Focus
    - No battery required
    - Colour: Black
    - Includes a waterproof carrying case

    Technical Specification

    • dimensionsDimensions
      25x44x25 mm
    • Field of View in Degrees FOV
    • Weight in grammes Weight
    • Lens Lens
    • Battery Type & Quantity Battery
      Powered by Smartphone
    • Resolution Resolution
      320 x 240
    • Range Range
    • Included in the box Included
      Waterproof case
    • Field of View in Degrees FOV
    • Range Range
    • Sensor Resolution Sensor Resolution
      320 x 240
    • Frame Rate Frame Rate
    • Power Power
      Powered by Smartphone
