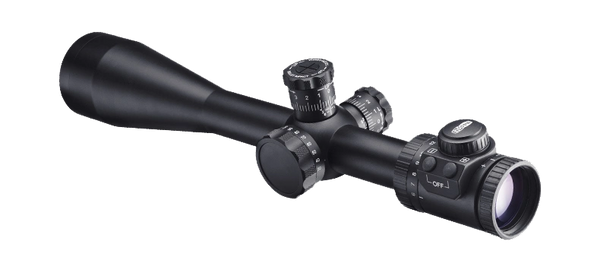

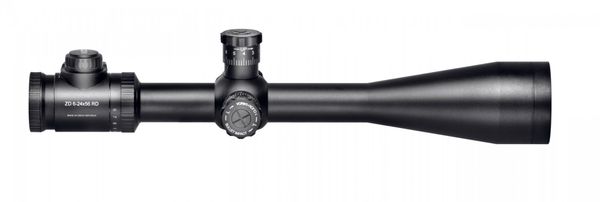

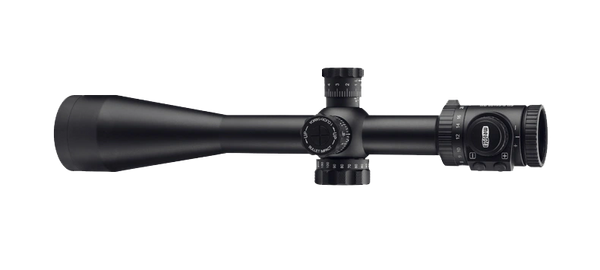

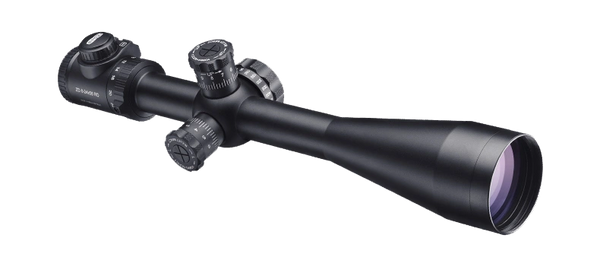

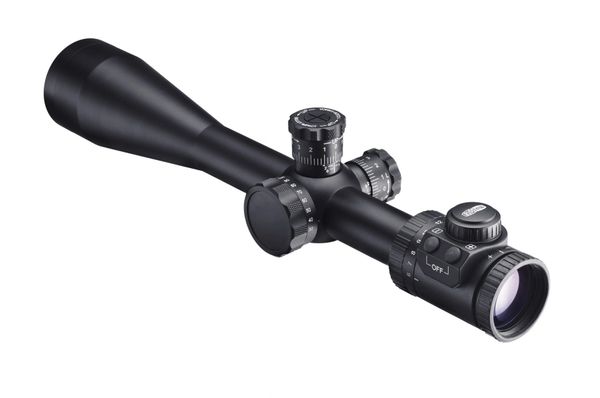

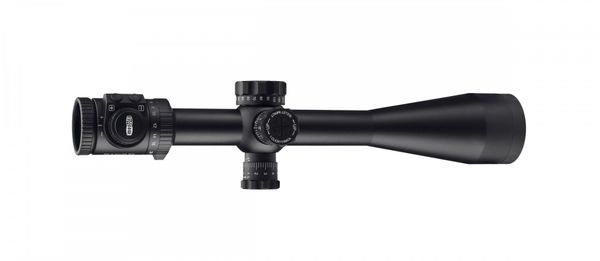

ZD 6-24x56 RD

Long range riflescope developed for sniper rifles.

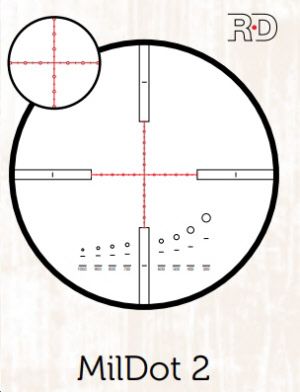

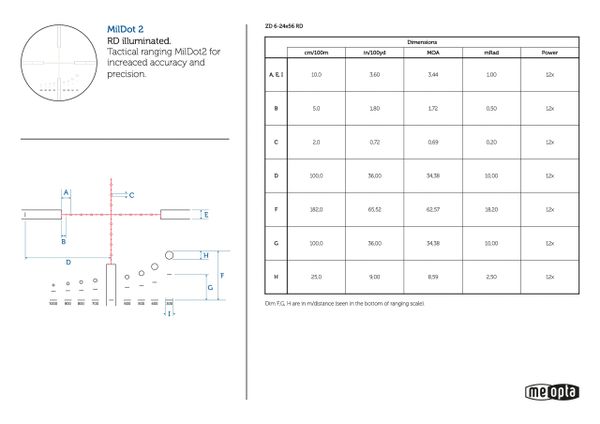

The ZD 6-24x56 RD is a precision long range riflescope developed for sniper rifles in order to achieve deadly-accurate shot placement at extreme distances. The new Mil Dot 2 illuminated reticle with integrated range-finding markers is calibrated for accurate target estimation in standard calibers 7.62x51 NATO, .308, .338 WM and 12.7 mm. Third turret parallax adjustment ranges from 25 m to infinity, guaranteeing precision aiming at any desired range.
Advanced illumination system situated on the ocular offers pushbutton control of the illumination with 256 settings for bright and adverse lighting conditions.

Magnification                                                                                                                   6 - 24 x

Objective lens                                                                                                                    56 mm

Objective Filter Thread                                                                                                M59x0.75

Main Tube Size                                                                                                                 30 mm

Exit Pupil Diameter                                                                                                 9.1 - 2.3 mm

Eye relief (mm / in)                                                                                          89 - 80 / 3.5 - 3.1

Field of view (m/100m // ft/100yds)                                                                  5.9 - 1.6 / 18 - 5

Field of View                                                                                                              3.37 - 0.9 °

Focal Plane Position                                                                                                                   2

Dioptric compensation                                                                                                     -3 / 3 D

Daylight Transmission                                                                                                         92 %

Twilight Transmission                                                                                                         90 %

Twilight Factor                                                                                                            18.3 - 36.7

Impact per click (cm/100m // in/100yds)                                                                      0.7 / 0.25

Windage and elevation adjustment range (cm/100m // in/100yds)           241V 122H 87V 44H

Paralax Correction                                                                                           30 m - infinity y/n

Length (mm / in)                                                                                                          386 / 15.2

Weight (g / oz)                                                                                                             868 / 30.6

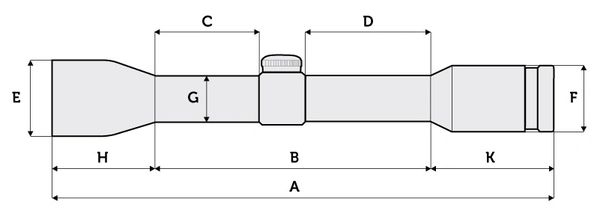

A                                                                                                                                      386 mm

B                                                                                                                                      169 mm

C                                                                                                                                        74 mm

D                                                                                                                                        55 mm

E                                                                                                                                        62 mm

F                                                                                                                                     44.5 mm

G                                                                                                                                        30 mm

H                                                                                                                                      136 mm

K                                                                                                                                        82 mm

MeoBright 5501

A proprietary ion-assisted lens multi-coating applied to all air-to-glass optical surfaces. Developed by Meopta, MeoBright 5501 ion- assisted multi-coatings eliminate glare and reflections and delivers an industry leading 99.8% light transmission per lens surface.

MeoShield

MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions. MeoShield meets military specifications for durability and surface hardness.

Lens Components

Individual lens components are meticulously ground and polished in-house and precisely matched for superior performance.

RD Illuminated Reticle System

RD equipped riflescopes feature a highly defined illuminated red dot reticle. A third turret controller allows the user to choose between a minimum of seven reticle intensity settings for extremely low-light to bright daylight conditions. Intermediate off positions between every setting allows the user find their preferred illumination setting quickly.

Etched Glass Reticle

Precision etched glass reticle delivers exceptional target definition for all shooting applications.

MeoTrak II Elevation and Windage Control

MeoTrak II posi-click finger adjustable windage and elevation turrets deliver precise, ¼ MOA (0,7cm / 100m) click adjustment with superior repeatability, unparalleled tracking capability and ultimate accuracy. Positive tactile and audible clicks ensure accurate zeroing and adjustability in the field.

Erector System

Developed to provide maximum holding force to withstand heavy caliber recoil.

MeoQuick

MeoQuick fast-focus eyepiece rapidly brings your target into sharp focus and provides extra diopter travel to accommodate a wider range of visual acuity variations.

30mm Main Tube Construction

One piece, aircraft grade aluminum 30mm main tube is “ELOX” hard anodized for an incredibly durable, scratch resistant, non-reflective matte black finish.

Waterproof

All riflescopes are 100% guaranteed waterproof, submersible and are fully protected against humidity, rain and snow.

Fogproof

All riflescopes are purged and sealed with inert Nitrogen gas to provide 100% guaranteed fogproof performance.

Shockproof

All riflescopes are 100% guaranteed shockproof to withstand impacts and heavy caliber recoil.

10 Years Transferable Warranty

All tactical riflescopes carry Meopta’s 10 Years Transferable Warranty (after registration).
