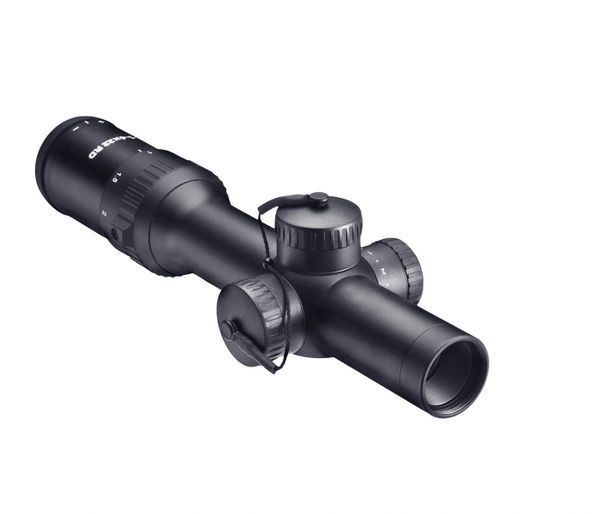

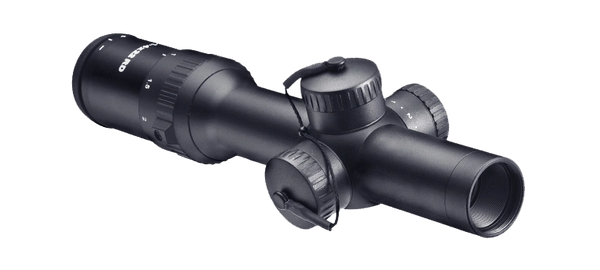

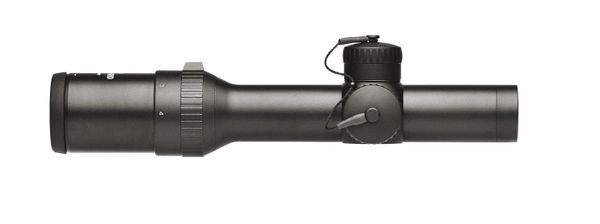

ZD 1-4x22 RD

True 1x magnification for rapid, eyes wide open target acquisition.

The ZD 1-4x22 RD delivers the versatility needed for close quarter situations up to and beyond 600 yards. A true 1x magnification allows rapid, eyes open target acquisition normally associated with reflex red dot sights yet with a quick turn of the magnification control you can engage at extended ranges. Optimized for daylight and challenging low-light conditions the RD illuminated reticle system provides 7 levels of intensity with intermediate off positions between each setting. Whether tactical or precision 3-gun competition, the ZD 1-4x22 RD is perfect for the professional wanting the finest optic for their AR or modern sports rifle.

Magnification                                                                                                                     1 - 4 x

Objective lens                                                                                                                    22 mm

Objective Filter Thread                                                                                             M26.5x0.75

Main Tube Size                                                                                                                 30 mm

Exit Pupil Diameter                                                                                               13.5 - 5.5 mm

Eye relief (mm / in)                                                                                          81 - 88 / 3.2 - 3.5

Field of view (m/100m // ft/100yds)                                                            36.1 - 9.2 / 108 - 28

Field of View                                                                                                          20.44 - 5.25 °

Focal Plane Position                                                                                                                   2

Dioptric compensation                                                                                                     -3 / 3 D

Daylight Transmission                                                                                                         92 %

Twilight Transmission                                                                                                         90 %

Twilight Factor                                                                                                                4.7 - 9.4

Impact per click (cm/100m // in/100yds)                                                                        1.4 / 0.5

Windage and elevation adjustment range (cm/100m // in/100yds)                               326 / 117

Paralax Correction                                                                                                              no y/n

Length (mm / in)                                                                                                            248 / 9.8

Weight (g / oz)                                                                                                             550 / 19.4

A                                                                                                                                      248 mm

B                                                                                                                                      143 mm

C                                                                                                                                        59 mm

D                                                                                                                                        55 mm

E                                                                                                                                        30 mm

F                                                                                                                                     41.5 mm

G                                                                                                                                        30 mm

K                                                                                                                                      104 mm

MeoBright 5501

A proprietary ion-assisted lens multi-coating applied to all air-to-glass optical surfaces. Developed by Meopta, MeoBright 5501 ion- assisted multi-coatings eliminate glare and reflections and delivers an industry leading 99.8% light transmission per lens surface.

MeoShield

MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions. MeoShield meets military specifications for durability and surface hardness.

Lens Components

Individual lens components are meticulously ground and polished in-house and precisely matched for superior performance.

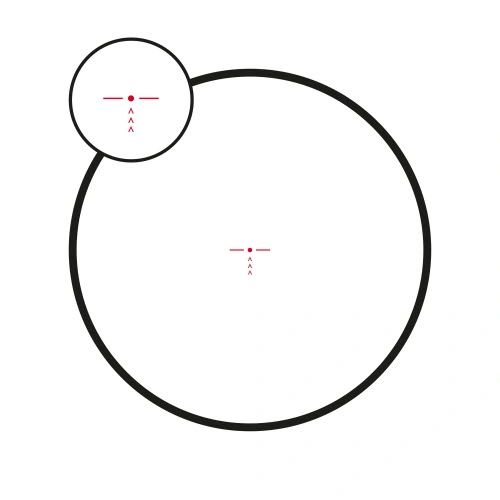

RD Illuminated Reticle System

RD equipped riflescopes feature a highly defined illuminated red dot reticle. A third turret controller allows the user to choose between a minimum of seven reticle intensity settings for extremely low-light to bright daylight conditions. Intermediate off positions between every setting allows the user find their preferred illumination setting quickly.

Etched Glass Reticle

Precision etched glass reticle delivers exceptional target definition for all shooting applications.

MeoTrak II Elevation and Windage Control

MeoTrak II posi-click finger adjustable windage and elevation turrets deliver precise, ¼ MOA (0,7cm / 100m) click adjustment with superior repeatability, unparalleled tracking capability and ultimate accuracy. Positive tactile and audible clicks ensure accurate zeroing and adjustability in the field.

Erector System

Developed to provide maximum holding force to withstand heavy caliber recoil.

MeoQuick

MeoQuick fast-focus eyepiece rapidly brings your target into sharp focus and provides extra diopter travel to accommodate a wider range of visual acuity variations.

30mm Main Tube Construction

One piece, aircraft grade aluminum 30mm main tube is “ELOX” hard anodized for an incredibly durable, scratch resistant, non-reflective matte black finish.

Waterproof

All riflescopes are 100% guaranteed waterproof, submersible and are fully protected against humidity, rain and snow.

Fogproof

All riflescopes are purged and sealed with inert Nitrogen gas to provide 100% guaranteed fogproof performance.

Shockproof

All riflescopes are 100% guaranteed shockproof to withstand impacts and heavy caliber recoil.

10 Years Transferable Warranty

All tactical riflescopes carry Meopta’s 10 Years Transferable Warranty (after registration).
